How Saddle Points Affect Machine Learning and Deep Learning: Understanding and Overcoming Optimization Challenges

Saddle points are a common phenomenon in optimization, especially in machine learning (ML) and deep learning (DL), where large neural networks often get stuck in non-optimal flat regions during training. In this SEO-optimized blog, we will explore the concept of saddle points, their impact on machine learning and deep learning models, and how they can complicate the optimization process. We will also discuss practical strategies for overcoming saddle points with mathematical explanations, backed by real-world examples.

What is a Saddle Point in Machine Learning?

A saddle point is a point in the loss landscape of a function where the gradient is zero, but unlike a local minimum or maximum, it does not represent an optimal solution. Instead, a saddle point is a point of neutral stability, where the function behaves differently in different directions.

In two-dimensional space, saddle points can be visualized with the function $$ f(x, y) = x^2 - y^2$$ Here, the point (0, 0) is a saddle point because:

• Along the x-axis, the function behaves like $$ x^2 $$ forming a convex shape (upward curve).

• Along the y-axis, the function behaves like $$ -y^2 $$ forming a concave shape (downward curve).

Mathematically, the function has a zero gradient at (0, 0):

$$\nabla f(0, 0) = [\frac{\partial f}{\partial x}, \frac{\partial f}{\partial y}] = [0, 0]$$

However, the Hessian matrix, which captures second-order partial derivatives, indicates a mixed curvature:

$$H = \begin{bmatrix} 2 & 0 \\ 0 & -2 \end{bmatrix}$$

The eigenvalues of the Hessian matrix are both positive and negative, showing the mix of concavity and convexity at the point, confirming that it is a saddle point.

Why Saddle Points Matter in Machine Learning

In machine learning, most problems are framed as an optimization task where we aim to minimize a loss function (or cost function). The goal is to find a global minimum, which represents the best possible solution that reduces prediction errors. However, in complex, high-dimensional spaces, the optimization process frequently encounters saddle points.

Saddle Points in High Dimensions

In deep learning, neural networks have large parameter spaces, which means their loss functions exist in very high-dimensional spaces. The higher the number of parameters (weights and biases), the more complex the optimization landscape becomes. With millions or billions of parameters, there are many more saddle points than there are local minima or maxima.

In fact, the number of saddle points grows exponentially with the number of dimensions. This is due to the nature of high-dimensional geometry: almost all critical points in such spaces are saddle points. Thus, it becomes highly likely that gradient-based optimization algorithms will encounter saddle points during training, leading to slow convergence or even convergence stagnation.

Effects of Saddle Points in Deep Learning Optimization

Saddle points in deep learning introduce several challenges that can affect model performance:

1. Slow Convergence: At a saddle point, the gradient becomes very small or zero, causing the optimization algorithm to make little to no progress. This leads to slow convergence, where the training process takes much longer to escape the saddle region.

2. Stuck in Suboptimal Regions: In high-dimensional spaces, the optimizer might stay in the vicinity of saddle points for a long time, preventing the model from finding a better solution. This often leads to suboptimal solutions, where the model underperforms.

3. Unstable Gradients: Saddle points can cause noisy gradients, especially in stochastic gradient descent (SGD). The optimizer may oscillate around a saddle point instead of converging toward a minimum, making the training process unpredictable and inefficient.

Saddle Points and Real-World Example: Neural Network Training

Consider the real-world case of training a deep neural network on the CIFAR-10 image classification dataset. The loss function used to evaluate the network's performance is highly non-convex, making it prone to saddle points during the optimization process.

In this case, let's assume the network gets stuck at a saddle point after several epochs of training. The gradients calculated by the backpropagation algorithm are close to zero, resulting in minimal parameter updates. Consequently, the model fails to improve its accuracy on the validation set, even after a long training period.

Google COlab Link: Saddle Point In Machine Learning and Deep Learning

Here’s a code example using PyTorch to illustrate the training process:

import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
import torchvision.transforms as transforms

# Load CIFAR-10 dataset
transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])
trainset = torchvision.datasets.CIFAR10(root='./data', train=True, download=True, transform=transform)
trainloader = torch.utils.data.DataLoader(trainset, batch_size=100, shuffle=True)

# Define a simple neural network
class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.fc1 = nn.Linear(32*32*3, 128)
        self.fc2 = nn.Linear(128, 10)

    def forward(self, x):
        x = x.view(-1, 32*32*3)
        x = torch.relu(self.fc1(x))
        x = self.fc2(x)
        return x

# Initialize the model, loss function, and optimizer
net = Net()
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)

# Training loop
for epoch in range(10):
    running_loss = 0.0
    for i, data in enumerate(trainloader, 0):
        inputs, labels = data
        optimizer.zero_grad()
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()
        running_loss += loss.item()
    print(f'Epoch {epoch+1}, Loss: {running_loss / len(trainloader)}')

Here, if the training loss plateaus after a few epochs, it’s likely that the network is stuck at a saddle point. Without adjusting the learning rate or optimizer, the model may take a very long time to reach a better solution or might not improve at all.

Interpretation of the Training Results

The following is the result of the loss values over 10 epochs of training. Here's a detailed breakdown of what these results mean:

 Epoch 1, Loss: 1.9627253720760345
Epoch 2, Loss: 1.7412255132198333
Epoch 3, Loss: 1.6575259447097779
Epoch 4, Loss: 1.602263219833374
Epoch 5, Loss: 1.5612614142894745
Epoch 6, Loss: 1.528698918581009
Epoch 7, Loss: 1.5013921117782594
Epoch 8, Loss: 1.4760114681720733
Epoch 9, Loss: 1.4531878709793091
Epoch 10, Loss: 1.4320361700057984

Epoch-wise Loss

• Epoch 1, Loss: 1.9627 – The model starts with a relatively high loss, which is typical in the early stages of training as the model is just beginning to learn patterns from the data.

• Epoch 2, Loss: 1.7412 – The loss decreases, indicating that the model is learning and improving its ability to make predictions.

• Epoch 3, Loss: 1.6575 – Further reduction in loss shows continued learning and optimization of the model parameters.

• Epoch 4 to Epoch 10 – The loss continues to decrease steadily over time, with diminishing improvements as training progresses, reaching a loss of 1.4320 by the 10th epoch.

Key Observations:

1. Decreasing Loss: The gradual decrease in loss means that the model is improving during training. A lower loss value implies that the neural network is getting better at minimizing the error between its predictions and the actual target values.

2. No Sudden Jumps: The training loss decreases smoothly, indicating that the model is not encountering significant issues like sudden spikes in gradients (which could signal learning rate problems or other optimization difficulties). The model is not diverging, which is a positive sign.

3. Saddle Point Possibility: While the loss decreases smoothly, the rate of reduction slows down in later epochs (for instance, between epoch 9 and epoch 10, the loss decreases only slightly, from 1.4531 to 1.4320). This could indicate that the model is approaching a saddle point or a plateau where the gradient becomes very small, making it difficult for the optimizer to make significant progress.

4. No Overfitting Yet: Since there is no validation loss provided in your results, it is hard to assess overfitting. However, given that the training loss is consistently decreasing, overfitting is unlikely at this point, especially within just 10 epochs. Overfitting typically occurs after longer training periods when the training loss decreases but the validation loss increases.

Possible Issues with Saddle Points:

From the observed results, the loss reduction appears slower after a certain point (e.g., after epoch 5), which might indicate the model is nearing a saddle point in the optimization landscape. This means the gradient values are becoming smaller and the updates are less impactful, causing the model to slow down its learning process.

Recommendations for Improvement

To enhance the model's performance and potentially escape any saddle points, we could try the following:

1. Switch to Adam Optimizer: Adam adapts the learning rate based on past gradients, making it more effective at escaping flat regions or saddle points in the loss landscape. Switching to Adam from SGD can help the model continue learning at a faster rate.

2. Learning Rate Scheduling: If we're already using Adam and still encounter slow progress, consider applying a learning rate scheduler to reduce the learning rate over time as the model gets closer to a local minimum. This helps fine-tune the model without overshooting.

3. Increase Epochs: The model might still be in the process of learning and hasn't converged yet. Increasing the number of epochs could help further reduce the loss.

4. Batch Normalization and Regularization: Adding techniques like batch normalization can help smooth out the optimization landscape, making it easier for the optimizer to avoid saddle points. Regularization techniques like dropout can also help improve generalization.

How Saddle Points Affect Gradient-Based Optimization Algorithms

Gradient Descent and Saddle Points

Gradient Descent is a popular optimization algorithm in machine learning and deep learning, but it is particularly vulnerable to saddle points. When the gradient is close to zero at a saddle point, the algorithm interprets this as a local minimum, which can lead to incorrect assumptions about convergence.

Mathematically, the update rule for gradient descent is:

$$\theta_{t+1} = \theta_t - \eta \nabla f(\theta_t)$$

Where:

$$\theta_t$$

are the parameters at time step ( t ),

$$\eta$$

is the learning rate,

$$\nabla f(\theta_t)$$

is the gradient of the loss function with respect to

$$\theta_t$$

At a saddle point, $$ \nabla f(\theta_t) $$ becomes zero or close to zero, leading to small updates in the parameter space and causing the training to slow down drastically.

Optimization Techniques to Overcome Saddle Points

Given the challenges that saddle points present, various optimization techniques have been developed to help machine learning and deep learning models avoid or escape these points.

1. Momentum-Based Gradient Descent

Momentum-based methods help accelerate the optimization process by incorporating previous gradients into the update rule. This allows the optimizer to continue moving even when the current gradient is small, helping it escape flat regions like saddle points.

The update rule for momentum-based gradient descent is:

$$v_{t+1} = \beta v_t + \eta \nabla f(\theta_t)$$

$$ \theta_{t+1} = \thetat - v{t+1}​$$

Here,$$v_t $$ is the velocity, and $$ \beta $$ is the momentum parameter (typically set to 0.9). This adds a "momentum" to the gradient updates, allowing the optimizer to carry forward previous updates even when gradients are small.

2. Adam Optimizer

The Adam optimizer (Adaptive Moment Estimation) is widely used in deep learning due to its ability to adapt the learning rate based on the gradient's magnitude. Adam incorporates both momentum and adaptive learning rates, making it more robust to saddle points.

The update rule for Adam is:

$$m_t = \beta_1 m_{t-1} + (1 - \beta_1) \nabla f(\theta_t) $$

$$v_t = \beta2 v{t-1} + (1 - \beta_2) (\nabla f(\theta_t))^2$$

$$ \hat{m_t} = \frac{m_t}{1 - \beta_1^t}, \quad \hat{v_t} = \frac{v_t}{1 - \beta_2^t}$$

$$ \theta_{t+1} = \theta_t - \eta \frac{\hat{m_t}}{\sqrt{\hat{v_t}} + \epsilon}$$

Adam adapts both the step size and direction of the updates, making it highly effective at overcoming the flat regions around saddle points.

3.Noise Injection

Noise injection is another technique used to prevent models from getting stuck at saddle points. By adding random noise to the gradients, the optimizer is given a small "push" that helps it escape flat regions. This is particularly useful in stochastic gradient descent (SGD), where small fluctuations in the gradients naturally help avoid saddle points.

4.Learning Rate Scheduling

This helps dynamically adjust the learning rate during training.

Overcoming Saddle Points

To address the issue of saddle points in the training process, we can implement several advanced optimization techniques as discussed above.

In this section, we’ll first see how to implement the Adam optimizer and momentum in the given code. Then, we’ code for visualizing the training process before and after applying these optimizes.

Step 1: Implementing Adam Optimizer

We can replace the existing SGD optimizer with the Adam optimizer to tackle saddle points more effectively.

The below code implements a training loop for a neural network using the Adam optimizer from the PyTorch library. It starts by importing the necessary optimization library and then initializes the Adam optimizer with a specified learning rate of 0.001. The training loop runs for ten epochs, where each epoch processes batches of data from a training dataset.

For each batch, the code clears previous gradients, performs a forward pass through the network to obtain predictions, computes the loss by comparing these predictions to the actual labels, calculates the gradients through back-propagation, and finally updates the model parameters. The average loss for each epoch is computed and printed to monitor the training progress.

Google Colab Link: Saddle Point In Machine Learning and Deep Learning

# Import necessary libraries
import torch.optim as optim

# Replace SGD with Adam optimizer
optimizer = optim.Adam(net.parameters(), lr=0.001)  # Use the Adam optimizer

# Training loop with Adam optimizer
for epoch in range(10):
    running_loss = 0.0
    for i, data in enumerate(trainloader, 0):
        inputs, labels = data
        optimizer.zero_grad()
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()
        running_loss += loss.item()
    print(f'Epoch {epoch+1}, Loss: {running_loss / len(trainloader)}')

After running this code, it will return the average loss for each epoch over the training process.

Epoch 1, Loss: 1.5736278235912322
Epoch 2, Loss: 1.4165134494304656
Epoch 3, Loss: 1.3389505159854889
Epoch 4, Loss: 1.2804023817777634
Epoch 5, Loss: 1.236517459511757
Epoch 6, Loss: 1.1986091190576553
Epoch 7, Loss: 1.1589201927185058
Epoch 8, Loss: 1.1283642394542694
Epoch 9, Loss: 1.0980406019687652
Epoch 10, Loss: 1.0717007248401642

Loss Values Analysis

• Decreasing Loss Trend: The loss decreases with each epoch, indicating that the model is learning and improving its predictions over time. This is a positive sign of effective training.

• Initial Loss (Epoch 1): The loss starts at approximately 1.57, which suggests that the model's initial predictions are significantly off from the actual labels.

• Final Loss (Epoch 10): By the end of the training, the loss has reduced to about 1.07, showing that the model has made substantial progress in minimizing the error between predictions and actual labels.

This trend suggests that the model is effectively learning from the data and reducing its error in predictions, which is a positive outcome in the training process.

Step 2: Adding Momentum to SGD

Now if we want to continue using SGD but add momentum, we can also modify the SGD optimizer.

The below code implements a training loop for a neural network using Stochastic Gradient Descent (SGD) with momentum. The optimizer is initialized with a learning rate of 0.001 and a momentum factor of 0.9, which helps accelerate the training process and stabilize updates to the network's weights. The training loop runs for 10 epochs, iterating over batches of data from the trainloader.

For each batch, the code retrieves the input data and corresponding labels, resets the gradients, performs a forward pass through the network to obtain predictions, computes the loss using a predefined criterion, and then back-propagates the loss to update the weights of the network. The loss for each epoch is accumulated and averaged over the number of batches, providing a measure of how well the model is learning.

# Using SGD with momentum
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)

# Training loop with momentum
for epoch in range(10):
    running_loss = 0.0
    for i, data in enumerate(trainloader, 0):
        inputs, labels = data
        optimizer.zero_grad()
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()
        running_loss += loss.item()
    print(f'Epoch {epoch+1}, Loss: {running_loss / len(trainloader)}')

After running this code, results show the average loss at the end of each epoch.

Epoch 1, Loss: 0.9185382397174835
Epoch 2, Loss: 0.8856798239946365
Epoch 3, Loss: 0.8705345125198364
Epoch 4, Loss: 0.8597348482608795
Epoch 5, Loss: 0.8516639568805695
Epoch 6, Loss: 0.8451274836063385
Epoch 7, Loss: 0.839013162612915
Epoch 8, Loss: 0.833211746931076
Epoch 9, Loss: 0.829345980644226
Epoch 10, Loss: 0.8249822441339493

Analysis of Loss Values

• Decreasing Loss: The loss values decrease from 0.9185 in Epoch 1 to 0.8250 in Epoch 10, indicating that the model is learning effectively over the epochs. A decreasing loss suggests that the model is improving its predictions and is better able to fit the training data.

• Convergence: The rate of decrease in loss becomes smaller over time, which is typical as the model approaches a minimum in the loss landscape. This could indicate that the model is nearing convergence.

• Performance Monitoring: These loss values can be used to monitor the performance of the model during training. If the loss were to plateau or increase, it might indicate issues such as a learning rate that is too high or a need for more training data or model adjustments.

Overall, the results suggest that the model is successfully learning from the training data and improving its performance over the epochs.

Step 3: Visualizing Before and After Effects of Saddle Point Optimization

We can visualize the loss reduction over epochs before and after applying techniques to deal with saddle points.

3.1. Before (Using Original SGD without Momentum)

The below code implements a simple training loop for a neural network using Stochastic Gradient Descent (SGD) as the optimization algorithm. It iterates through the training data for 10 epochs, computes the loss for each mini-batch, and updates the model's weights using back-propagation.

After each epoch, the code calculates the average loss and appends it to a list (losses_sgd) for tracking how the model's performance evolves over time. After the training loop, the code plots a graph that shows how the average loss changes across the epochs, providing a visual insight into the model’s learning progress.

import matplotlib.pyplot as plt

# Original SGD without momentum, capturing loss
losses_sgd = []
optimizer = optim.SGD(net.parameters(), lr=0.001)

for epoch in range(10):
    running_loss = 0.0
    for i, data in enumerate(trainloader, 0):
        inputs, labels = data
        optimizer.zero_grad()
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()
        running_loss += loss.item()
    avg_loss = running_loss / len(trainloader)
    losses_sgd.append(avg_loss)
    print(f'Epoch {epoch+1}, Loss: {avg_loss}')

# Plot loss for SGD
plt.plot(range(1, 11), losses_sgd, label='SGD')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Loss Before Optimization (SGD)')
plt.legend()
plt.show()

After running this code, results show the average loss at the end of each epoch.

Epoch 1, Loss: 0.8078203999996185
Epoch 2, Loss: 0.8058094044923783
Epoch 3, Loss: 0.8050363935232162
Epoch 4, Loss: 0.8044451702833175
Epoch 5, Loss: 0.8041314733028412
Epoch 6, Loss: 0.8034574118852615
Epoch 7, Loss: 0.8032528175115585
Epoch 8, Loss: 0.8028408600091934
Epoch 9, Loss: 0.8024044642448426
Epoch 10, Loss: 0.8020669914484024

Analysis of Loss Values

• Initial Loss (Epoch 1: 0.8078): At the beginning of training (Epoch 1), the average loss is relatively high (0.8078), indicating that the model's predictions are far from the true labels.

• Gradual Decline: Over the course of 10 epochs, the loss steadily decreases, although only by a small margin. By Epoch 10, the loss is 0.8021. This suggests that the model is learning, but the rate of improvement is slow, as the loss values do not change drastically between epochs.

• Convergence: The loss is decreasing in very small increments after each epoch (e.g., from 0.8078 to 0.8021 over 10 epochs). This could indicate that the model is slowly converging, but might require more epochs, a higher learning rate, or additional techniques (like momentum or different optimizers) to accelerate learning.

• Model Performance: Since the loss reduction is minimal, the model's optimization with vanilla SGD (no momentum) is somewhat slow. The current settings might not be sufficient to significantly lower the loss, and adjustments (like tuning hyperparameters or using advanced optimizers) could improve this.

In summary, the model is learning, but the training process is slow, with minimal reduction in loss over 10 epochs.

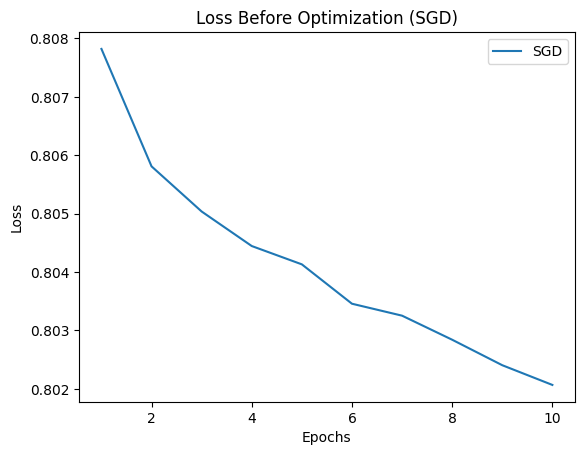

The Loss Plot SGD (without Optimizer)

This plot helps visualize the loss reduction over time, showing the model's performance is improving as training progresses. The loss to gradually decrease, but in this case, the improvement is minimal, reflecting slow convergence with the current settings.

3.2. After (Using Adam Optimizer or SGD with Momentum)

The below code is about training a neural network using the Adam optimizer over 10 epochs and recording the loss at each epoch. It iterates through batches of data from the training set, performs forward propagation to get predictions, calculates the loss using a specified criterion (likely cross-entropy or mean-squared error), and then uses back-propagation to update the model's parameters.

The loss for each epoch is averaged and stored in a list, which is then used to visualize the training progress by plotting the loss curve over the 10 epochs.

# Adam optimizer, capturing loss
losses_adam = []
optimizer = optim.Adam(net.parameters(), lr=0.001)

for epoch in range(10):
    running_loss = 0.0
    for i, data in enumerate(trainloader, 0):
        inputs, labels = data
        optimizer.zero_grad()
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()
        running_loss += loss.item()
    avg_loss = running_loss / len(trainloader)
    losses_adam.append(avg_loss)
    print(f'Epoch {epoch+1}, Loss: {avg_loss}')

# Plot loss for Adam
plt.plot(range(1, 11), losses_adam, label='Adam', color='green')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Loss After Optimization (Adam)')
plt.legend()
plt.show()

After running this code, results show the average loss at the end of each epoch.

Epoch 1, Loss: 1.031735120654106
Epoch 2, Loss: 1.001027988433838
Epoch 3, Loss: 0.966429421544075
Epoch 4, Loss: 0.9449693411588669
Epoch 5, Loss: 0.9256336561441422
Epoch 6, Loss: 0.9047521337270736
Epoch 7, Loss: 0.8953418710231781
Epoch 8, Loss: 0.8718800785541534
Epoch 9, Loss: 0.8528776743412018
Epoch 10, Loss: 0.8364942131042481

Analysis of Loss Values

• Decreasing Loss: The loss consistently decreases from 1.0317 in the first epoch to 0.8365 in the tenth epoch. This indicates that the Adam optimizer is successfully minimizing the loss function and that the model is learning from the data over time.

• Learning Progress: The rate of decrease in loss slows down over the epochs. This is a typical pattern, where the initial epochs show larger reductions in loss, but as the model becomes more optimized, the rate of improvement decreases.

• Convergence: The loss values suggest that the model is gradually converging towards a lower loss. By the tenth epoch, the loss reduction is less significant, implying the model is approaching its optimal state.

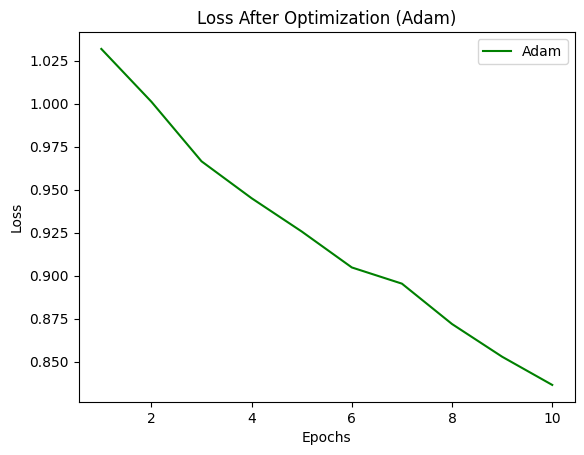

The Loss Plot ADAM (without Optimizer)

The loss values gradually decline as the epochs increase, following a typical learning curve where the model's performance improves over time. The curve starts at a higher value (around 1.03), indicating the initial loss, and slopes downward towards 0.83, showing the improvement. The loss decreases in a smooth, steady manner without abrupt fluctuations, suggesting that the Adam optimizer is providing stable and consistent optimization. This visually confirms the model's improvement over time and indicates effective training.

3.3. Comparison Plot (Before and After Optimization)

To see the improvement clearly, let's combine both the loss curves in a single plot.

# Comparison Plot: SGD vs Adam
plt.plot(range(1, 11), losses_sgd, label='SGD', color='red')
plt.plot(range(1, 11), losses_adam, label='Adam', color='green')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Loss Comparison: SGD vs Adam')
plt.legend()
plt.show()

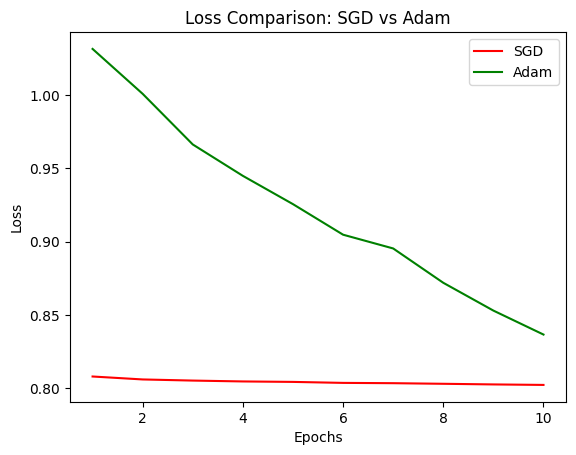

Loss Comparison Plot: SGD vs. ADAM

The graph will show two lines, one for SGD (red) and one for Adam (green),

Key Observation of Loss Values

Based on the provided graph titled "Loss Comparison: SGD vs Adam", here's an interpretation of the visualized data:

Red Line (SGD)

• The loss using Stochastic Gradient Descent (SGD) starts at around 0.80 and remains almost constant throughout the 10 epochs. The loss decreases slightly but then stabilizes quickly.

• This suggests that SGD converges slowly and doesn't significantly reduce the loss over time, showing less improvement in minimizing the error.

Green Line (Adam)

• The loss for the Adam optimizer starts at a higher value, around 1.05, but decreases steadily over the 10 epochs. By the end, it reduces to below 0.85.

• This indicates that Adam is more efficient at reducing the loss, especially early in the training process. The steady decline suggests that Adam is learning and optimizing faster than SGD in this particular scenario.

Key Takeaways

• Adam shows better performance compared to SGD in terms of reducing the loss over time. While Adam starts with a higher initial loss, it converges much more effectively as the epochs progress.

• SGD appears slower to converge, maintaining a flat loss curve without much reduction, which may indicate either slower optimization or potential challenges in the model's ability to learn effectively with SGD.

In summary, the Adam optimizer performs significantly better than SGD in this case, consistently reducing the loss with each epoch, while SGD's loss remains nearly flat and shows minimal improvement.

Thus, by switching from plain SGD to Adam or using momentum with SGD, we can overcome the challenges of saddle points, leading to more efficient training and better model performance.

4. Further Strategies to Improve Saddle Point Handling

If the Adam optimizer alone does not fully solve the problem, consider applying these additional techniques:

4.1. Learning Rate Scheduling

A learning rate scheduler adjusts the learning rate dynamically during training, allowing the optimizer to make large strides at the beginning of training and smaller, more precise adjustments later on. This can help in escaping saddle points early in training while allowing the model to settle into better minima later.

Example of learning rate scheduling with PyTorch:

scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=5, gamma=0.1)

for epoch in range(10):
    running_loss = 0.0  # Initialize running_loss at the start of each epoch
    for i, data in enumerate(trainloader, 0):
        inputs, labels = data

        optimizer.zero_grad()  # Reset gradients

        outputs = net(inputs)  # Forward pass
        loss = criterion(outputs, labels)  # Calculate loss

        loss.backward()  # Backpropagate the loss
        optimizer.step()  # Update model parameters

        running_loss += loss.item()  # Accumulate the loss (convert tensor to a Python number)

    scheduler.step()  # Adjust learning rate after every epoch

    # Print the average loss for this epoch
    print(f'Epoch {epoch+1}, Loss: {running_loss / len(trainloader)}')

After running this code, results show the average loss at the end of each epoch.

Epoch 1, Loss: 0.7405920437574387
Epoch 2, Loss: 0.736799397945404
Epoch 3, Loss: 0.711026372551918
Epoch 4, Loss: 0.7054688773751259
Epoch 5, Loss: 0.6827691122293472
Epoch 6, Loss: 0.5176242384314537
Epoch 7, Loss: 0.48635926461219786
Epoch 8, Loss: 0.47831941479444506
Epoch 9, Loss: 0.47204986268281934
Epoch 10, Loss: 0.4663036950826645

Analysis of Loss Values

• Initial Epochs (1 to 5): The first five epochs show a general trend of decreasing loss, indicating that the model is learning and optimizing its parameters. However, the rate of improvement starts to slow down after epoch 3, suggesting the model may be approaching a local minimum or a saddle point.

• Later Epochs (6 to 10): The loss values in these epochs show a more pronounced improvement, especially from epoch 5 to epoch 6. This suggests that optimization strategies of learning rate scheduling were implemented after the initial epochs, enabling the model to escape potential saddle points and continue improving.

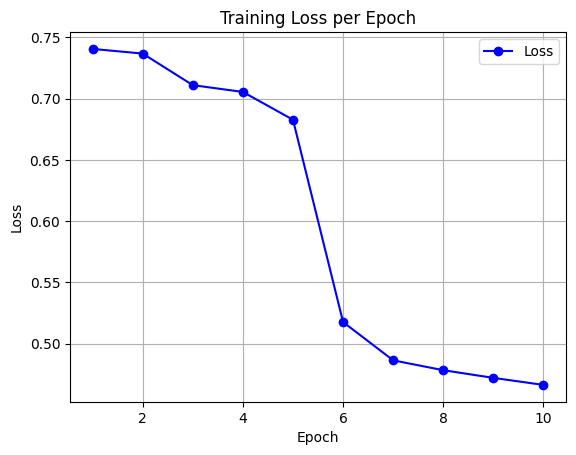

• The Loss Plot for Learning Rate Scheduling

• Initial Decrease: The graph initially slope downward from epoch 1 to 5, indicating that the model is learning.

• Steeper Drop: There is a noticeable steeper drop between epochs 5 and 6. This suggests that the adjustments made (possibly due to learning rate scheduling) allowed the model to make a significant leap forward in reducing loss.

• Plateauing: As epochs progress, while the loss continues to decrease, the rate of improvement lessens towards epochs 9 and 10. This indicates that the model is reaching convergence or that further improvements are becoming more challenging.

• Learning Rate Scheduling to handle Saddle Points: Learning rate scheduling helps adjust the learning rate dynamically during training, which is critical when dealing with saddle points in the loss landscape. By implementing learning rate scheduling, the above model avoided getting stuck in saddle point region . The significant drop in loss between epochs 5 and 6 suggests that the learning rate have been adjusted to allow the model to escape from such a point, leading to improved performance.

4.2. Weight Initialization

Poor initialization of weights can cause the model to encounter saddle points early in the training. Use smarter initialization techniques like He initialization or Xavier initialization to give the optimizer a better starting point.

The CIFAR-10 dataset consists of 60,000 32x32 color images in 10 different classes. Below, code loads and train a neural network on the CIFAR-10 dataset using the He initialization method.

import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
import torchvision.transforms as transforms
import matplotlib.pyplot as plt

# Define the neural network architecture
class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(3, 32, 3, padding=1)  # Convolutional layer 1
        self.conv2 = nn.Conv2d(32, 64, 3, padding=1)  # Convolutional layer 2
        self.fc1 = nn.Linear(64 * 8 * 8, 128)         # Fully connected layer 1
        self.fc2 = nn.Linear(128, 10)                  # Output layer

        # Apply He initialization
        nn.init.kaiming_uniform_(self.conv1.weight, nonlinearity='relu')
        nn.init.kaiming_uniform_(self.conv2.weight, nonlinearity='relu')
        nn.init.kaiming_uniform_(self.fc1.weight, nonlinearity='relu')

    def forward(self, x):
        x = torch.relu(self.conv1(x))  # First convolutional layer with ReLU activation
        x = nn.MaxPool2d(2)(x)         # Max pooling
        x = torch.relu(self.conv2(x))  # Second convolutional layer with ReLU activation
        x = nn.MaxPool2d(2)(x)         # Max pooling
        x = x.view(-1, 64 * 8 * 8)     # Flatten the input
        x = torch.relu(self.fc1(x))     # Fully connected layer with ReLU activation
        x = self.fc2(x)                 # Output layer
        return x

# Load CIFAR-10 dataset
transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))  # Normalize images
])

trainset = torchvision.datasets.CIFAR10(root='./data', train=True, download=True, transform=transform)
trainloader = torch.utils.data.DataLoader(trainset, batch_size=64, shuffle=True)

# Initialize the model, loss function, and optimizer
net = Net()
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(net.parameters(), lr=0.001)

# Define a function to train the model and store the loss history
def train_model(optimizer, optimizer_name):
    loss_history = []

    # Training loop
    for epoch in range(10):
        running_loss = 0.0
        for i, data in enumerate(trainloader, 0):
            inputs, labels = data
            optimizer.zero_grad()  # Clear the gradients
            outputs = net(inputs)  # Forward pass
            loss = criterion(outputs, labels)  # Compute loss
            loss.backward()  # Backward pass
            optimizer.step()  # Update weights
            running_loss += loss.item()  # Accumulate loss
        avg_loss = running_loss / len(trainloader)
        loss_history.append(avg_loss)
        print(f'{optimizer_name} - Epoch {epoch+1}, Loss: {avg_loss:.4f}')

    return loss_history

# Train the model using Adam optimizer with He initialization
adam_loss_history = train_model(optimizer, "Adam")

# Plot the loss history for visualization
plt.plot(range(1, 11), adam_loss_history, label='Adam Loss (He Initialization)')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Loss History with Adam Optimizer and He Initialization on CIFAR-10')
plt.legend()
plt.show()

The results show the loss values for a model trained using the Adam optimizer using He initializer over ten epochs

Adam - Epoch 1, Loss: 1.2803
Adam - Epoch 2, Loss: 0.9186
Adam - Epoch 3, Loss: 0.7658
Adam - Epoch 4, Loss: 0.6414
Adam - Epoch 5, Loss: 0.5304
Adam - Epoch 6, Loss: 0.4308
Adam - Epoch 7, Loss: 0.3366
Adam - Epoch 8, Loss: 0.2578
Adam - Epoch 9, Loss: 0.1920
Adam - Epoch 10, Loss: 0.1493

Analysis of Loss Values

• General Trend: The loss consistently decreases over the epochs, from 1.2803 in Epoch 1 to 0.1493 in Epoch 10. This trend indicates that the model is effectively learning from the data and improving its performance over time.

• Epoch-by-Epoch Analysis:

  • Epoch 1: The loss starts relatively high at 1.2803. This is common at the beginning of training, where the model has not yet learned any meaningful patterns from the data.

  • Epoch 2: The loss decreases to 0.9186, showing that the model is beginning to improve.

  • Subsequent Epochs: As training progresses, the loss continues to decline: The loss continues to decrease each epoch, reaching 0.5304 in Epoch 5, 0.4308 in Epoch 6, and so on.

  • Final Epoch (Epoch 10): The loss reaches its lowest point of 0.1493, indicating that the model has learned effectively.

  • Convergence: The steady decline in loss suggests that the training process is converging well. The model is not only learning but is also doing so without any signs of instability (such as drastic changes in loss).

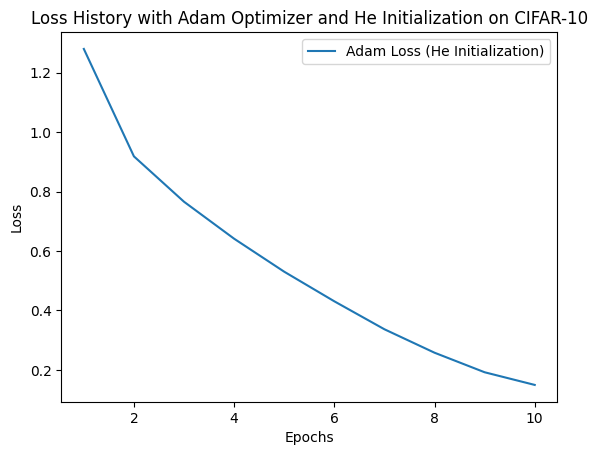

The Loss Plot for Weight (He) Initialization

• Curve Shape: The graph shows a smooth, downward-sloping curve, reflecting the decreasing loss values. The slope is steeper in the early epochs and gradually flatten as it approaches the final loss, indicating diminishing returns as the model approaches optimal performance.

• No Oscillations or Plateaus: The absence of significant oscillations or plateaus in the graph further supports the notion that the training process was stable and effective, without major hurdles in terms of saddle points or poor initialization.

Weight Initialization: The improvement in loss over epochs implies that the weight initialization was appropriate, allowing the Adam optimizer to navigate the loss landscape effectively. Good weight initialization helps preventing issues like slow convergence or getting stuck in saddle points. The consistent decrease in loss over epochs suggests that the model was able to escape saddle points efficiently and continue towards lower loss values.

Google Colab Link: Saddle Point In Machine Learning and Deep Learning

Conclusion: Navigating Saddle Points in Deep Learning

Saddle points are a common challenge in deep learning, particularly when using gradient-based optimization methods like Stochastic Gradient Descent (SGD). These points can impede the training process, causing slow convergence and potentially leading to sub-optimal solutions. However, employing advanced optimization techniques such as the Adam optimizer, learning rate scheduling, and effective weight initialization can help models maneuver past these obstacles, resulting in more efficient convergence.

Visualizing the impact of saddle points before and after adopting the Adam optimizer highlights the significant enhancements in the model's capacity to minimize the loss function. This underscores the necessity of selecting appropriate optimization strategies to effectively address saddle points in machine learning and deep learning contexts.

In high-dimensional parameter spaces, saddle points are an inherent aspect of optimization. While they may hinder training, understanding their characteristics and leveraging sophisticated techniques—such as momentum, Adam, and noise injection—can mitigate their negative impact.

By identifying saddle points and implementing these strategies, practitioners can achieve faster and more consistent model convergence, thereby enhancing performance in various real-world applications like image classification and natural language processing.

In summary, while saddle points pose notable challenges in deep learning, the right tools and techniques enable practitioners to overcome these hurdles, leading to more robust and accurate machine learning models.
